| S4200? REINFORCED EXPANDED GRAPHITE SHEET |
| ? |
 |
| ? |
 |

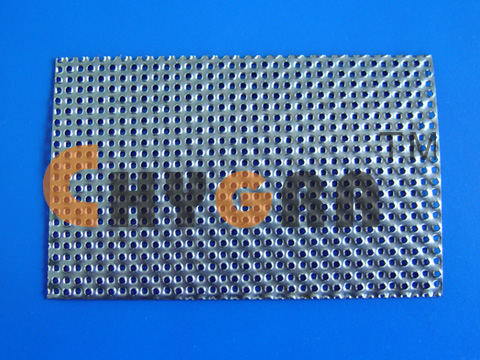

CHYGRATM? Reinforced expanded graphite sheet is comprised of? |
| expanded graphite sheet and various steel sheets such us tanged, flat or mesh. It has character of thermally stability, high strength and no cold flow etc. It is an ideal material of all kinds of reinforced graphite gaskets, engine heat gaskets etc.. |
| ? |
| Size: |
| Style |
Length(mm) |
Width(mm) |
Thickness(mm) |
| Reinforced tanged insertion |
<=2000 |
<=1500 |
1.0~3.0 |
| Flat adhesive bond insertion |
<=2000 |
<=1500 |
0.8~3.0 |
|
| ? |
| Service range: |
| Reinforced inserted material |
Construction |
DID52913(N/mm2) Stability under compressive stress |
Temperature(¡ãC) |
| In oxidizing media |
In non oxidizing media |
| Tanged carbon steel sheet(Thickness 0.2~0.25) |
 |
>=48 |
-10~450 |
-10~500 |
| AISI304,316 Tanged(Thickness 0.1~0.127) |
 |
>=48 |
-240~450 |
-200~600 |
AISI304,316
Flat sheet(Thickness 0.05~0.1) |
 |
>=45 |
-240~450 |
-200~600 |
AISI304,316
mesh |
 |
>=40 |
-240~450 |
-200~600 |
|
| ? |
| Reinforced inserted material |
Construction |
ASTM F36A-66 Compressibility |
ASTM F36A-66 Recovery |
Sealability(1.5mm)m1/hr |
| N2 |
Bumming oil |
| Tanged carbon steel sheet(Thickness 0.2~0.25) |
|
30~35 |
15~20 |
30 |
<0.5 |
| AISI304,316 Tanged(Thickness 0.1~0.127) |
|
30~40 |
15~30 |
60 |
<0.5 |
AISI304,316
Flat sheet(Thickness 0.05~0.1) |
|
40~50 |
10~15 |
35 |
<0.5 |
AISI304,316
mesh |
|
30~35 |
15~20 |
7000 |
58 |
|
| ? |
|
| ? |
|
